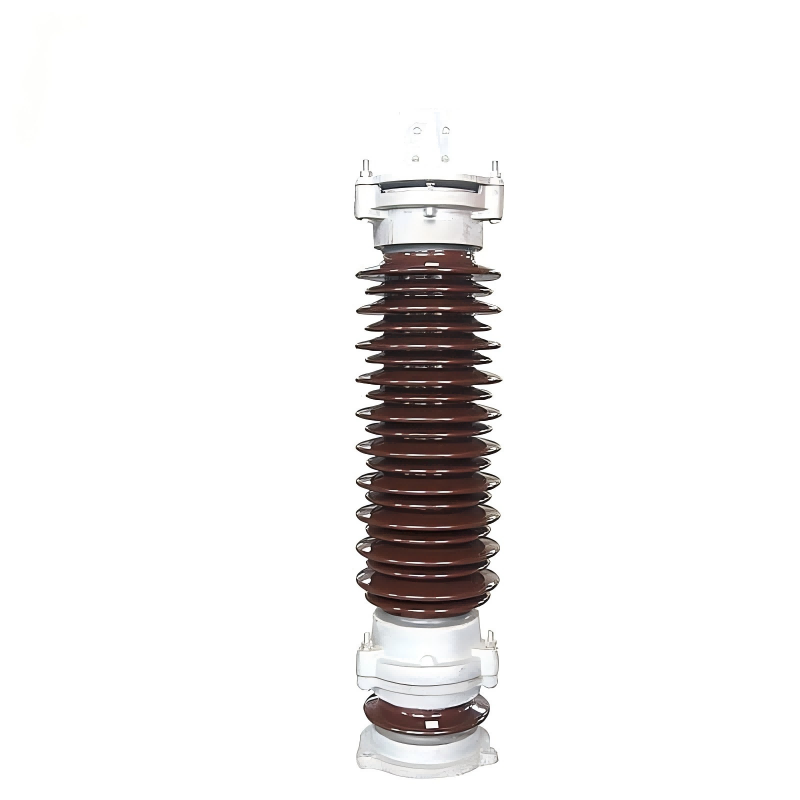

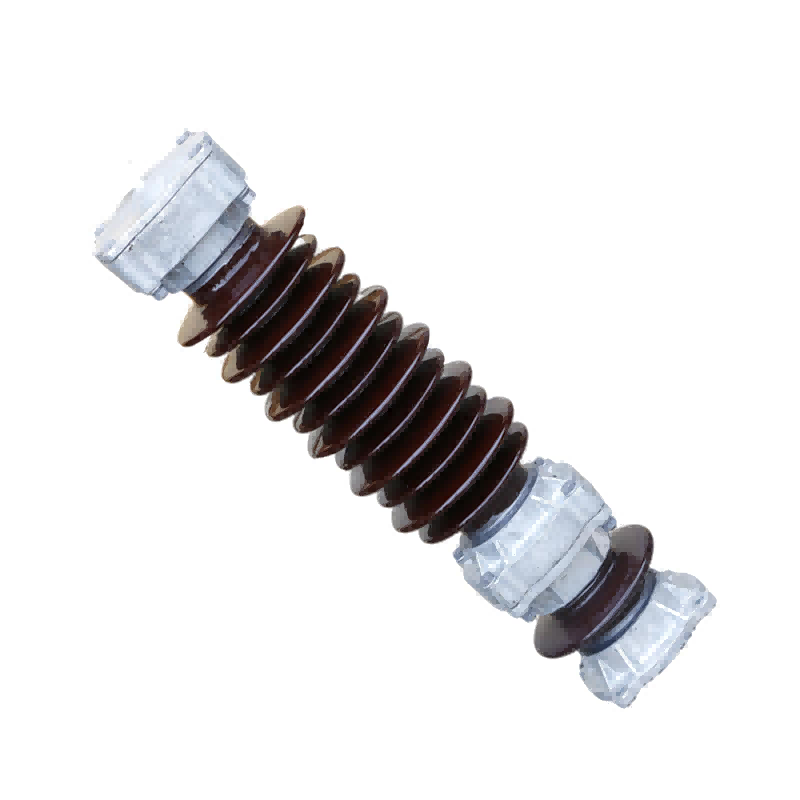

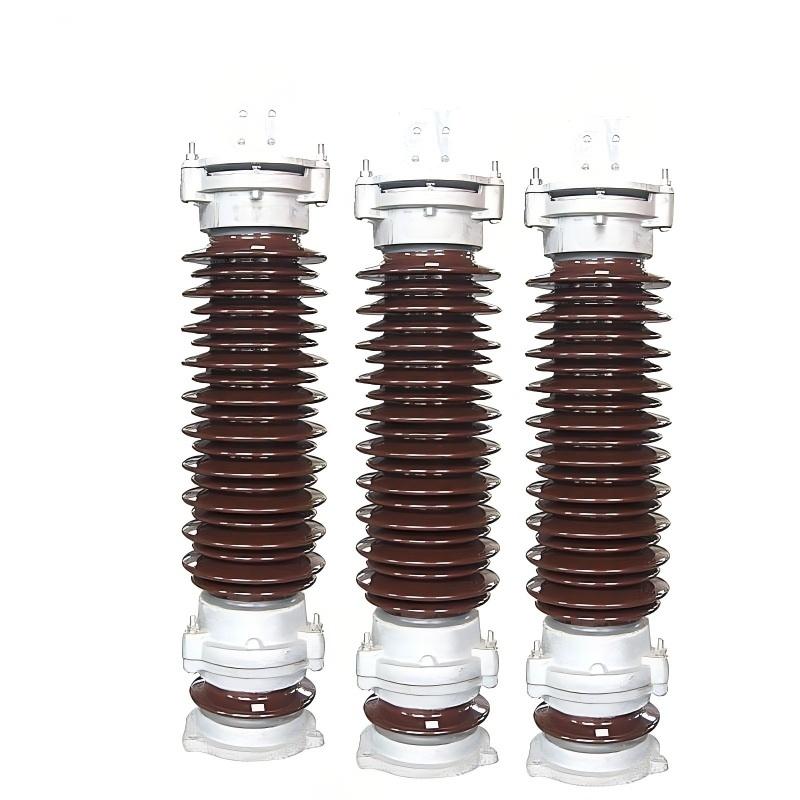

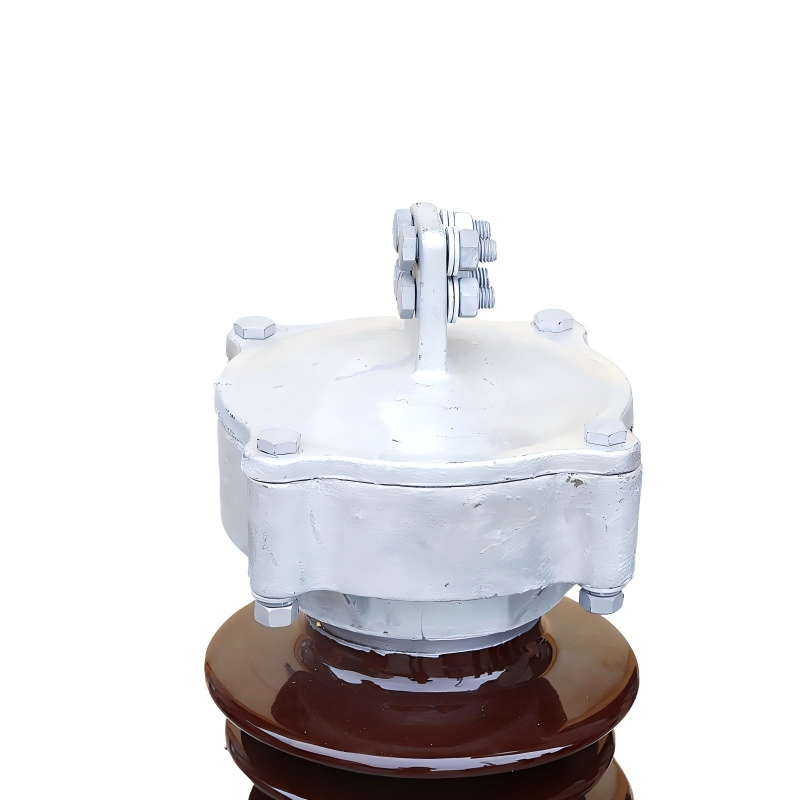

35kv Porcelain colit Surge Arrester pro efficax fulmen Praesidium

Lugao 35kV fictilem Surge Arrester uti princeps qualitas habitationi ceramic et magni effectus valvae nuclei oxydi oxydi, altum vires mechanicas offerentes, resistentia contaminationi, et signatio praeclara. Ponuntur ad fulgurum faciendae tutelae in linearum transmissione 35kV, substationum sinum et exitus, systemata distributio, instrumentum electrica industriae. Instructi cum recta productione professionali et sufficienti inventario, magno volumine videre possunt emptorem postulare. Lugao's Surge Arrester agnita et redempta est a multis clientibus.

Mitte Inquisitionem

depictio producti

Lugao 35kV fictilem lagenam Surge Arrester utitur summus perficientur oxydi oxydi resistors et summus qualitas fictilia insterni, unde in notis nonlinearibus volt-ampere excellentibus notis et potentia frequentiae facultatem sustinendi. Productum robustum, obsignatum structuram iactat, contaminationi et senescente resistit, et ad 35kV lineas transmissionis et substationi instrumenti aptus, efficaciter limitans fulgurum overvoltationem et mutandi overvoltage. Surge Arrester technologiam plene obsignatam adhibet ad vitandum umorem internum et oxidationem. Apta est ad tutelam transmissionis 35kV linearum transmissionum, substationum instrumentorum et systematum distributionis aptam. Facile est instituere et manutenere et habere operationem stabilem.

Technical Specifications

Type	Rectum valorem de voltage comprehensor rated (KV'	Valor virtualis nominalis ratio voltage(KV)	Valor virtualis intentionis continui (kV)	D.C.1mA reference intentione (KV)	per ardua current impulsus	sub sedendum current impulsus	sub switchign current impulsus	2000 μS Fluctus quadratus capacitas fluit (A)	Princeps vena compressionem facultatem 4/10 (A)	Max.leakags (μ A) sub 0.75 temporibus D.C. referentis intentionis
Y5WZ-42/134	42	32	23.4	73	154	134	114	150	65	50
Y5WZ-51/134	51	35	40.8	73	154	134	114	150	65
Y5WZ-54/134	54	35	40.8	76	154	134	114	150	65
Y5WZ-84/221	84	66	67.2	121	254	221	188	400	65
Y5WZ-90/235	90	66	72.5	130	270	235	201	400	65
Y10WZ-75/250	75	66	60	127	288	250	213	600	100
Y10WZ-75/223	75	66	60	127	256	223	190			50
Y10WZ-75/230	75	66	60	127	265	230	196
Y10WZ-96/250	96	66	75	140	280	250	213
Y10WZ-90/232	90	66	72.5	130	266	232	198
Y10WZ-90/235	90	66	72.5	130	270	235	201
